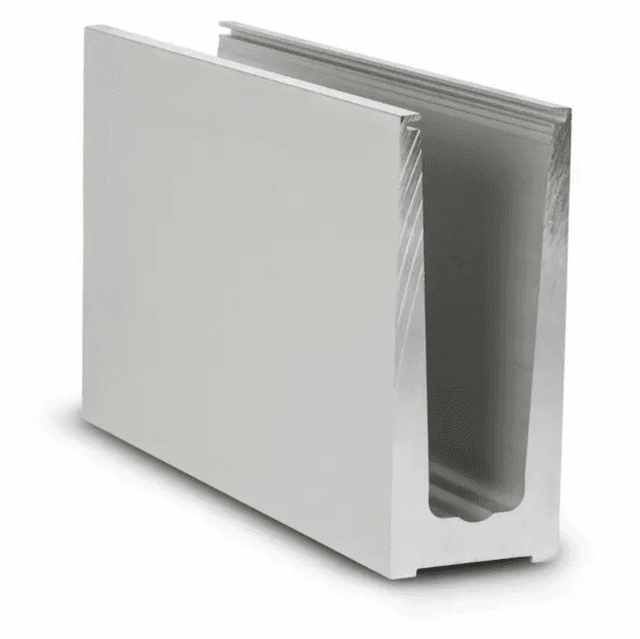

Our base fixed channel is one of the most popular profiles that we supply. It is fully adjustable from one side only. This allow you to fix from the balcony side only without having to buy any expensive lifting equipment. The glass is fixed within the profile using a wedge based system. This means that it is fully adjustable when having to align your panels of glass.

Our base fixed Flex Fit channel is manufactured by our German supplier Onlevel and we distribute this profile for them. It is branded by them as 6010 based fixed channel. When fixing the channel within the profile, you should use a 12mm countersunk fixing.
The 6010 balustrade system is fully tested to a line load test of 0.74kN when fixed to steel or concrete using 15mm, 17.5mm or 21.5mm glass. When using 15mm toughened glass in our 6010 base fixed channel you should also use a handrail if you are protecting a fall of 600mm or more.

The height of the glass when suing our 6010 Onelvel base fixed channel depends on whether or not you have a handrail. If you have a handrail you should deduct 13mm from height. The distance from the bottom of the profile of the 6010 onlevel channel to the bottom of the glass is 16mm. The overall height of any balustrade is 1100mm. Therefore if you have a handrail, the height of the glass will be 1100 – 16 – 13. Our technical team are on hand to advise you on any questions that you have on our 6010 onlevel profile.

As standard, out 6010 Onlevel channel is supplied in a natural anodised finish. It is a dark silver. As an alternative, we can powder coat the profile to any colour that you require. We can also cut the 6010 profile to your exact dimensions. If you do require powder coating, the profile should be cut before it is sent to the powder coaters to avoid the powder coating cracking.

Flex Fit Base Fixed Channel Systems

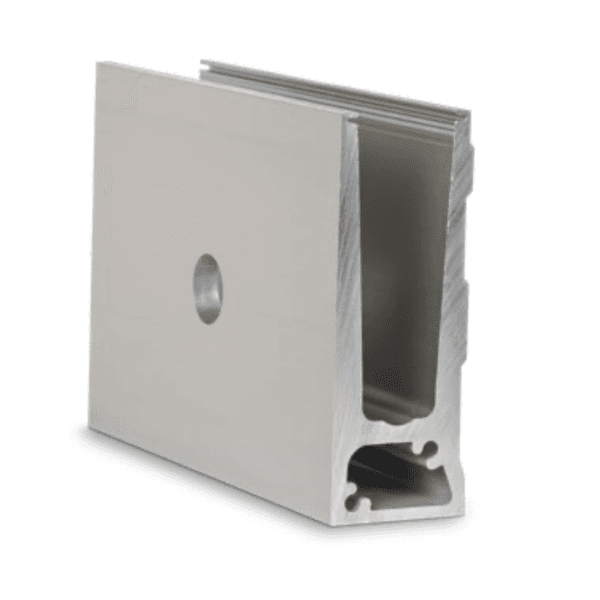

Our Flex Fit side fixed channel can be used to fix to the side of any structure. It is sold with two holes in either leg of the channel. If the channel is exposed, then the outside leg of the channel should either be covered with cladding or capped to ensure that the exposed leg is not visible. The side fixed channel is sold with clamp kits to secure 12mm, 13.5mm, 15mm, 17.5mm or 21.5mm glass. Our technical team can advise you on the appropriate glass thickness for your application.

Our Flex Fit channel is also branded as 6011 balustrade channel and is manufactured by our German supplier, Onlevel. The 6011 side fixed channel is ideal for installations when you would like to avoid fixing to the top of a roof for instance when you are trying to avoid piercing through outer membrane of a waterproof roof.

The glass is secured within the 6011 side fixed channel with a wedge based system which is fully adjustable. Using our Flex Fit tool, you can secure and then adjust the glass within the channel. Where you have a long run of channel, you can then align the panels within the profile without the need for a handrail or glass stiffeners.

When measuring the height of your glass within the side fixed Flex Fit 6011 Onlevel channel, you need to ensure that from finished floor level to top of the glass (or handrail if you have one) is 1100mm for any eternal balustrade. Once the profile is fitted to the side of the building, it will usually sit beneath finished floor level. The height of the panel will need to be adjusted to reflect this.

Our technical team are always on hand to advise you on any questions that you may have on our 6011 onlevel side fixed channel.

Side Mount for Flex Fit Channel

The slender and attractive design makes Flex Fit Channel one of our most elegant looking profiles.

Fully tested to 0.74kN (the required line load test for a domestic balcony at height) using 17.5mm glass it can be used in any domestic installation. Flex Fit and be adjusted from one side only saving substantial cost in terms of renting scaffolding or a cherry picker
Fully adjustable, it allows you to adjust each glass panel by up to 40mm in relation to the base channel.

Flex Fit is a wedge based system. It is helpful to have the tool which then allows you to adjust the glass within the profile. This video will support with the installation of Flex Fit Channel.

<a href="https://www.youtube.com/watch?v=K0KZr9Ja2pM&amp;t=2s.">https://www.youtube.com/watch?v=K0KZr9Ja2pM&amp;t=2s. </a>

Flex Fit

Easy-to-use, the OnLevel CombiFit Tool enables fast and perfect alignment of glass panels. The combi Fit tool has multiple benefits when installing our flex fit system.
Only requiring access from one side of the balustrade, with just a simple movement of your hand, this tool helps knock the wedges into position once the glass is plumbed, and also allows for the removal of the wedges when uninstalling the glass panels – ensuring both your glass panel and the channel is not damaged in the process. The glass adjustment tool features a wheel which smoothly installs the rubber gaskets without the need to continually bend down making installation faster and neater.
This CombiFit tool is suitable to use for our entire flex fit U-Channel range, although not technically required to install it makes the process much smoother and more straight forward. We strongly recommend you buy this tool in conjunction with the base rail.

Combitool

Base Mount Channel - Flex Fit Pro

Side Mount For Flex Fit Pro Channel

CombiFit Tool

Easy-to-use, the OnLevel FlexFit Tool enables fast and perfect alignment of glass panels. The Flex Fit tool allows you to easily fit the flex fit clamp kits into the show profile with the glass.
Only requiring access from one side of the balustrade, with just a simple movement of your hand, this tool helps you position the angle of the glass panels in relation to the vertical axis of the channel system down to a precision of one millimetre. Adjusting the packers allows for you to create a plumb, clean and aesthetic finish to your frameless glass balustrade channel system.
This glass adjustment tool is suitable to use for our entire flex fit U-Channel range, although not technically required to install it makes the process much smoother and more straight forward. We strongly recommend you buy this tool in conjunction with the base rail.

Flex Fit Tool

Our Flex Fit side fixed spacer block is the perfect solution for anyone using our Fascia Fixed Flex Fit channel system who is at risk of water pooling or flooding against the wall the channel is mounted on. This block is designed to fit between the flex fit channel and the wall, creating a slight gap to allow water or rain to pass through.
Made from high-quality, weather-resistant materials, this block is built to withstand the elements. It&#8217;s durable and long-lasting, so you can trust it to protect your property from water damage. The block is also easy to install. Simply place it between the channel and the wall at every fixing hole and you&#8217;re good to go.
Not only does this block protect your property from water damage, it also helps to keep your balustrade looking its best. By allowing water to drain away, it prevents pooling and helps to prevent the build-up of dirt and debris. So if you want to protect your property and keep your balustrade looking its best, this spacer block is a must-have. It&#8217;s an essential component for anyone using our Fascia Fixed Flex Fit channel system and more liable to have water build up against the wall the channel is mounted on.

Spacer

fixed spacer block

Flex Fit side fixed spacer block

Size

End cap for staircase with side cladding shaped right

Right End Cap, Staircase

RIGHT

End Cap

End Cap for Staircase

End cap with side classing

Right End Cap

Staircase

End cap for staircase with side cladding shaped left

Left End Cap, Staircase

LEFT

Left End Cap

Colour

Our Flex Fit Blanking Caps, also known as hole plugs, are an essential accessory for use with our Side Drilled Flex Fit channel system. These caps cover the predrilled holes on the channel, creating a clean and polished look. They are available in black, white, and grey, allowing you to choose the perfect color to match your project. These Blanking Caps are ideal for achieving an industrial aesthetic, adding a modern and functional touch to any installation. They are sold in bags of 10, with the price reflecting the cost of 1 bag. These caps are easy to install, simply push them into the holes on the channel and you&#8217;re done. If you have any questions about this product or how to use it, don&#8217;t hesitate to contact our team.

Blanking Cap

GREY

25MM

Flex Fit Blanking Caps

Flex Fit Blanking Caps for Side Drilled Channel System

For use when joining two profiles together

Extension Pin

Extension Pin for Joining Profiles

Grade

Length 2

Finish

Our 5m Flex Fit Side Cladding is a stylish and practical way to finish off your Flex Fit side drilled aluminium channel balustrade system. Made from durable aluminium, this cladding cover is designed to cover fixing holes and screw heads, giving your installation a clean and polished look. It is available in 2.5m or 5m lengths, with a bespoke cutting service also available to ensure the perfect fit for your project. This cladding can be used as an alternative to hole plugs or blanking plugs, which can be purchased separately if desired. It is important to note that the cladding does not provide any structural support and is for aesthetic purposes only. Mounting strips are included with the cladding for easy installation. If you have any questions about this product or whether it is suitable for your needs, don&#8217;t hesitate to contact our team.

Flex Fit Side Cladding - 5m

Satin

5m Flex Fit Side Cladding

5m Side Cladding

Length 1

Our 2.5m Flex Fit Side Cladding is a stylish and practical way to finish off your Flex Fit side drilled aluminium channel balustrade system. Made from durable aluminium, this cladding cover is designed to cover fixing holes and screw heads, giving your installation a clean and polished look. It is available in 2.5m or 5m lengths, with a bespoke cutting service also available to ensure the perfect fit for your project. This cladding can be used as an alternative to hole plugs or blanking plugs, which can be purchased separately if desired. It is important to note that the cladding does not provide any structural support and is for aesthetic purposes only. Mounting strips are included with the cladding for easy installation. If you have any questions about this product or whether it is suitable for your needs, don&#8217;t hesitate to contact our team.

Flex Fit Side Cladding - 2.5m

2.5M

2.5m Flex Fit Side Cladding

2.5m Side Cladding

This Flex Fit end cap is made from anodised aluminium and is designed to fit securely at the end of our Flex Fit channel system. It has a sleek finish, hiding the view of clamp kits and glass from the side, making it suitable for both domestic and commercial applications. This end cap is secured with strong 3M adhesive tape, which is already attached to the end cap, ensuring a neat and finished look once installed. If you have any questions about whether this end cap is suitable for your needs, please don&#8217;t hesitate to contact our team.

Flex Fit End Cap - Right

aluminium end cap

Flex Fit End Cap - Left

Flex Fit End Cap

90 degree outside corner for side fixed flex fit channel. Hole Pre drilled. Outside length 200mm
